Application
General-purpose bulk material loading – coal, iron ore & other bulk commodities into open rail wagons
About Our Product
Loading railway wagons manually or through slow batch methods takes hours and often leads to uneven loading across a rake. When wagons are not loaded evenly, it causes delays at the weighbridge and problems during unloading at the destination too. A rapid wagon loading system solves this by loading each wagon with a pre-set target weight while it is moving under the loading point, so the whole rake gets loaded within a short time window, not hours.

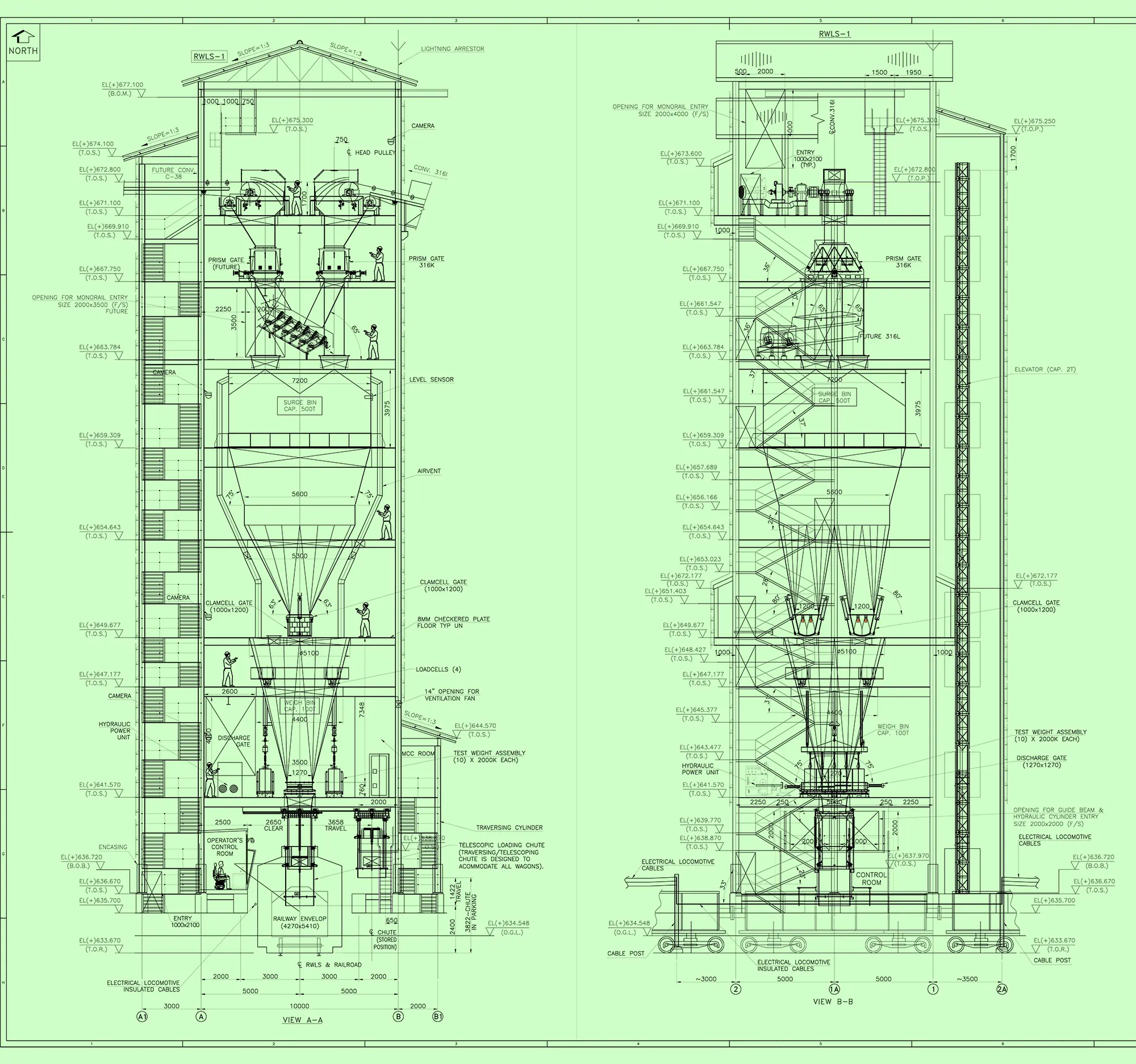

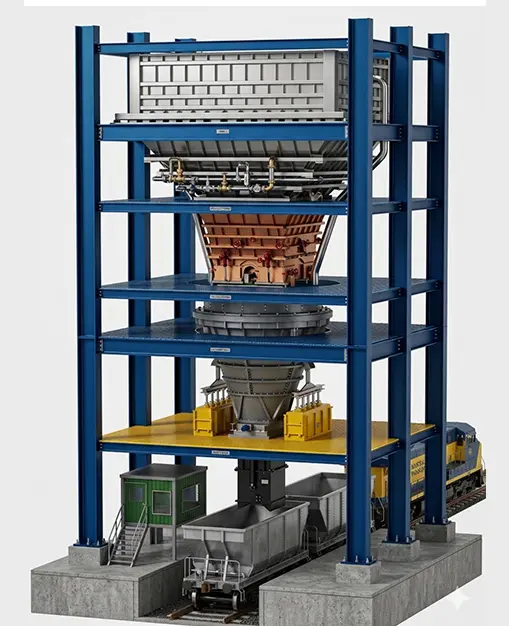

The system uses a surge hopper, a telescopic chute, and a hydraulic discharge gate that opens and closes based on wagon position and speed. As the wagon passes under the chute, material flows in a controlled manner until the target weight is reached, and the gate shuts automatically before the next wagon arrives. This is what makes it an in motion wagon loading system — there’s no need to stop the train completely for every wagon, which saves a huge amount of dispatch time for coal, cement, iron ore, and mineral loading terminals.
Know More
A good railway wagon loading system needs to handle continuous, heavy-duty use without losing accuracy, and that's exactly what our system is built for. We use PLC-based control with real-time wagon speed sensing, so material flow adjusts automatically as the train moves, keeping every wagon load within a tight tolerance. Dust suppression is built into the chute design too, which keeps the loading yard cleaner and safer for staff working nearby. As one of the established rapid wagon loading system Manufacturers in India, we design each system around the actual rake length, wagon type, and material handled at your terminal.
