About Our Product

Manufacturing Durable Modular Weighbridges

This is advanced weighing equipment that provides higher accuracy and requires less maintenance than most existing weighbridges. Modular weighbridges are available in both pit and surface-mounted configurations. They are an extremely cost-effective device for a wide range of applications. The main feature of Modular Weighbridge is "Ease of Erection". Modular Weighbridges may be simply disassembled and reassembled in any place.

A modular truck scale requires no foundation, only a smooth, hard surface on which the load cell plates sit. This saves a lot of money and time. The modular design allows for easy, cost-effective transportation and re-installation.
Download PDF
✔

Built for Mining Duty

One modular design, field-configurable from 10T site trucks to 250T rigid dumpers — no re-engineering per fleet.

▭

Cup & Ball or DESB

Choose compression-type Cup & Ball or Double-Ended Shear Beam load cells to match your foundation and site conditions.

⚡

Surge & Lightning Hardened

Fully protected junction boxes, armoured cabling and isolated I/O built to survive monsoon and open-pit electrical conditions.

🖥

Unmanned & Connected

ANPR, boom barriers, CCTV and cloud dashboards integrate directly with the weight indicator — no third-party stitching.

01

Platform & Load Cell Configuration

Platform Construction

  • Heavy structural steel, pit or pitless mounting
  • Modular sections — 3m to 6m per module
  • Full-length: 12m to 24m, width 3.0–3.5m
  • Deep-beam / box-girder deck for axle overload margin
  • Hot-dip galvanised / anti-corrosive primer & enamel finish

Foundation Options

  • RCC pit-type foundation — flush with ground
  • Pitless / above-ground with ramps — faster install
  • Site-graded for open-pit & hilly mine terrain
  • Drainage-integrated design for monsoon regions
  • Suitable for both permanent and relocatable sites

Rated Capacities

  • 10T · 20T · 30T · 40T · 60T
  • 80T · 100T · 150T · 200T · 250T
  • Intermediate capacities engineered on request
  • Safe overload margin built into every load cell rating
  • Sized to fleet — from tippers to rigid mine dumpers
Option A

Cup & Ball Load Cells

Compression-type alloy steel cells with self-aligning cup & ball seating that isolates side loads and eccentric loading — a proven, field-serviceable choice for high-vibration mine haul roads.

Option B

DESB Load Cells

Double-Ended Shear Beam cells in hermetically sealed alloy steel, IP68-rated, for low-profile pit installations with tight deflection tolerances and superior long-term repeatability.

02

Junction Box, Cabling & Indicator

Junction Box Cast aluminium / SS316 enclosure, IP67-IP68, potted terminal chamber, integrated lightning & surge suppression, corner-adjustment summing circuit
Instrumentation Cable Armoured, shielded, UV & rodent-resistant, direct-burial rated, routed through sealed conduit between cells, JB and indicator
Weight Indicator Digital high-resolution display, backlit for outdoor visibility, multi-level password protection, auto zero-tracking, tare & gross-net modes
Connectivity RS232 / RS485 / Ethernet / GSM-GPRS, ticket printer output, remote large display, SCADA / ERP-SAP data exchange
Automation Software Unmanned weighbridge operation, ANPR & RFID vehicle ID, boom barrier & traffic-light interlock, CCTV snapshot capture, cloud data logging & MIS reporting
Power Supply 230V AC ±10%, 50Hz, with battery backup / UPS; solar-compatible for remote mine sites
03

Performance & Compliance

  • ✔Accuracy Class: OIML R76 Class III (multi-interval on request)
  • ✔Repeatability: within legal-for-trade tolerance across full range
  • ✔Load Cell Protection: IP68, hermetically sealed, corrosion-resistant alloy steel
  • ✔Operating Range: -20°C to +60°C, monsoon & dust-resistant enclosures
  • ✔Surge Protection: lightning arrestors at JB, indicator & cell summing points
  • ✔Calibration: traceable test weights, NPL-referenced certification
  • ✔Service: PAN-India installation, commissioning & AMC support
LEGAL METROLOGY ISO 9001 CE MADE IN INDIA

Know More

Our Modular Weighbridge Systems are Made with Premium Materials

Vartech Weighing Systems Pvt. Ltd. designs and manufactures a premium range of weighbridges. We are one of the top modular weighbridge manufacturers in India, offering tailored solutions. You can customize your weighbridge according to your requirements here. Our electronic modular weighbridges feature high-quality digital load cells and a steel structure. The product is resistant to shock loads and vibrations.

Once manufactured, our products go to the quality-testing unit. Our engineers check these weighing systems properly to ensure their quality and performance. We are one of the top modular weighbridge suppliers in India that has years of experience in the weighing industry. Contact us now to learn more about our modular vehicle weighbridges.

Various Features Of Our Products

1. Digital weighing indicators​
2. Robust structure​ that is corrosion-resistant
3. Compact and sturdy steel deck​
4. Maintenance free
5. Available in customizable sizes
6. Quick and simple installation
7. Low profile and space-saving​

Know More

Various Applications

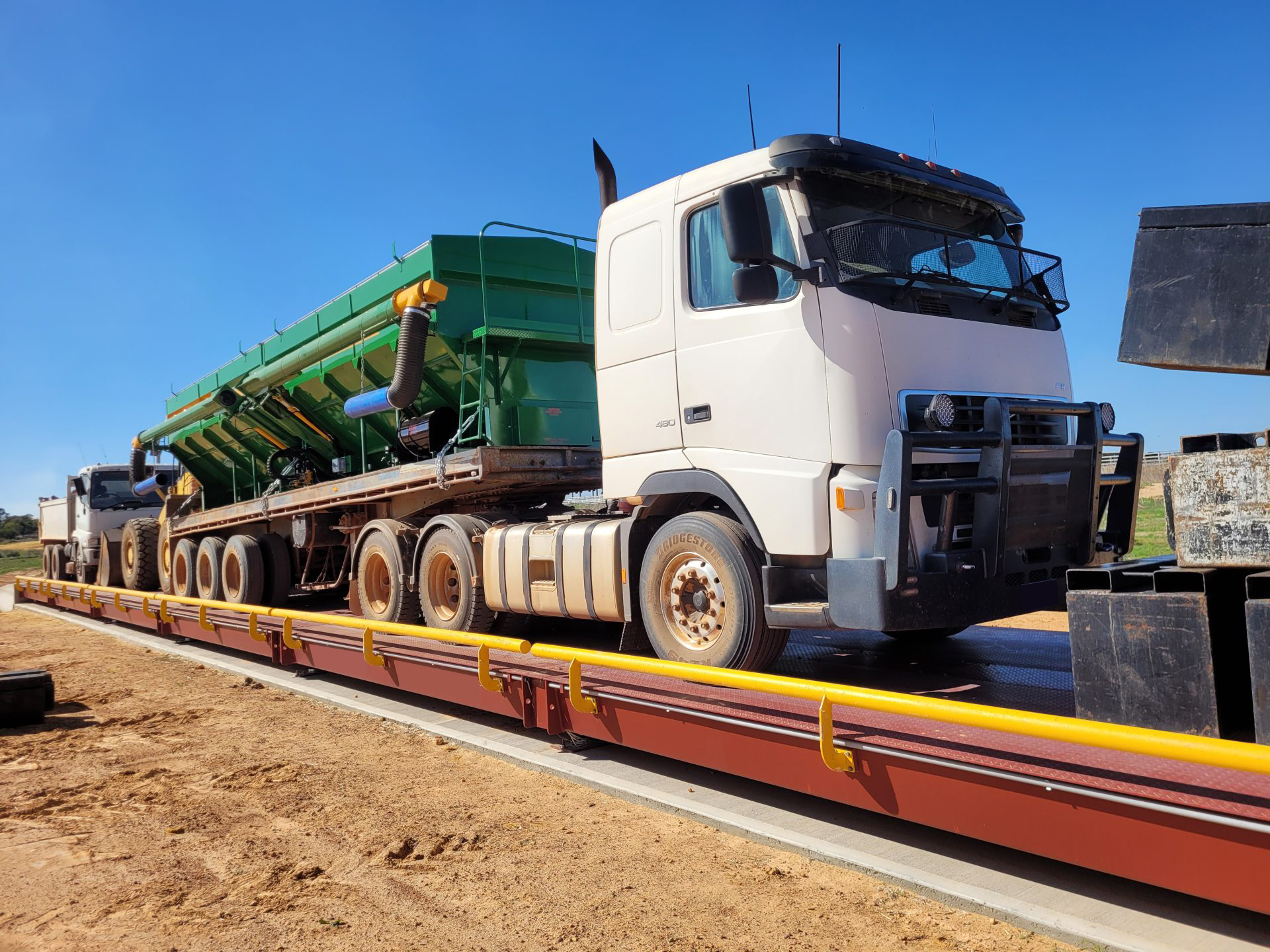

weih09

1. Vehicle and truck weighing​

2. Farms and the agricultural sector​

3. Ports and logistics centers​

4. Mining and construction sites​

5. Chemical plants

6. Food processing units
